Features:

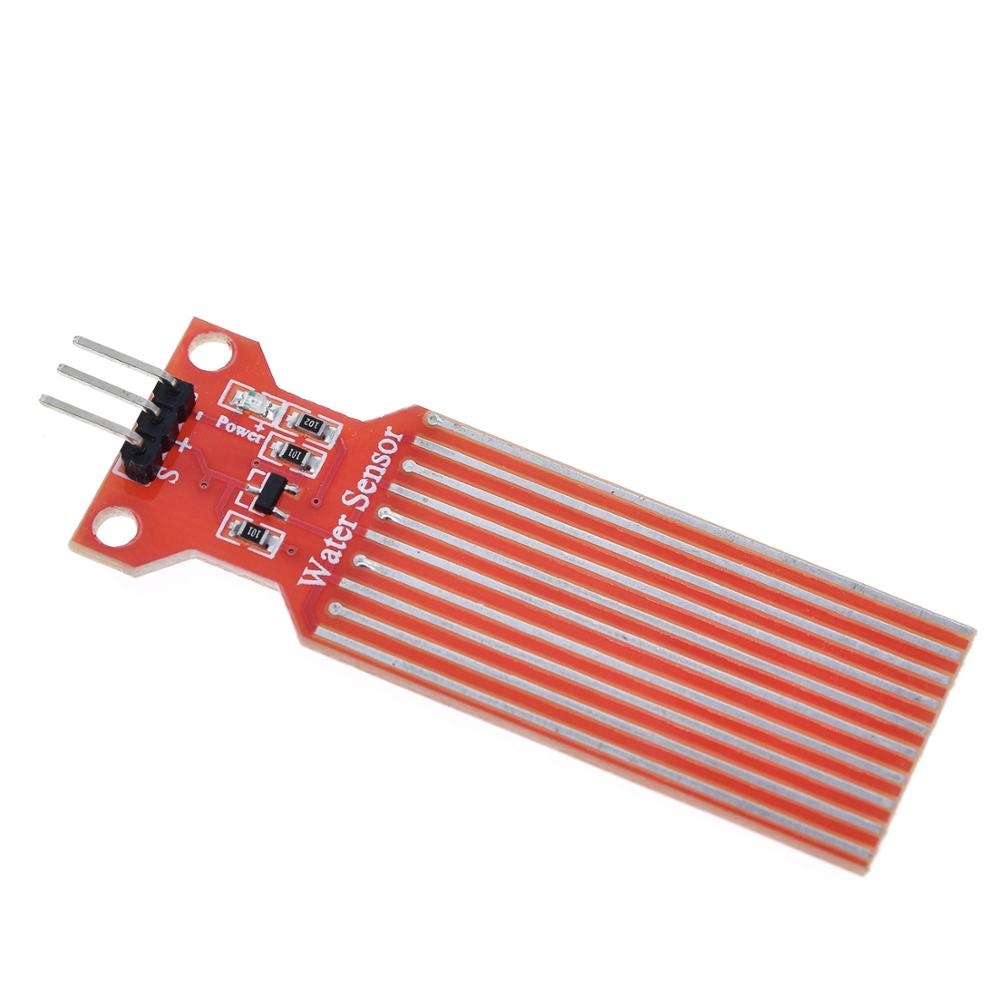

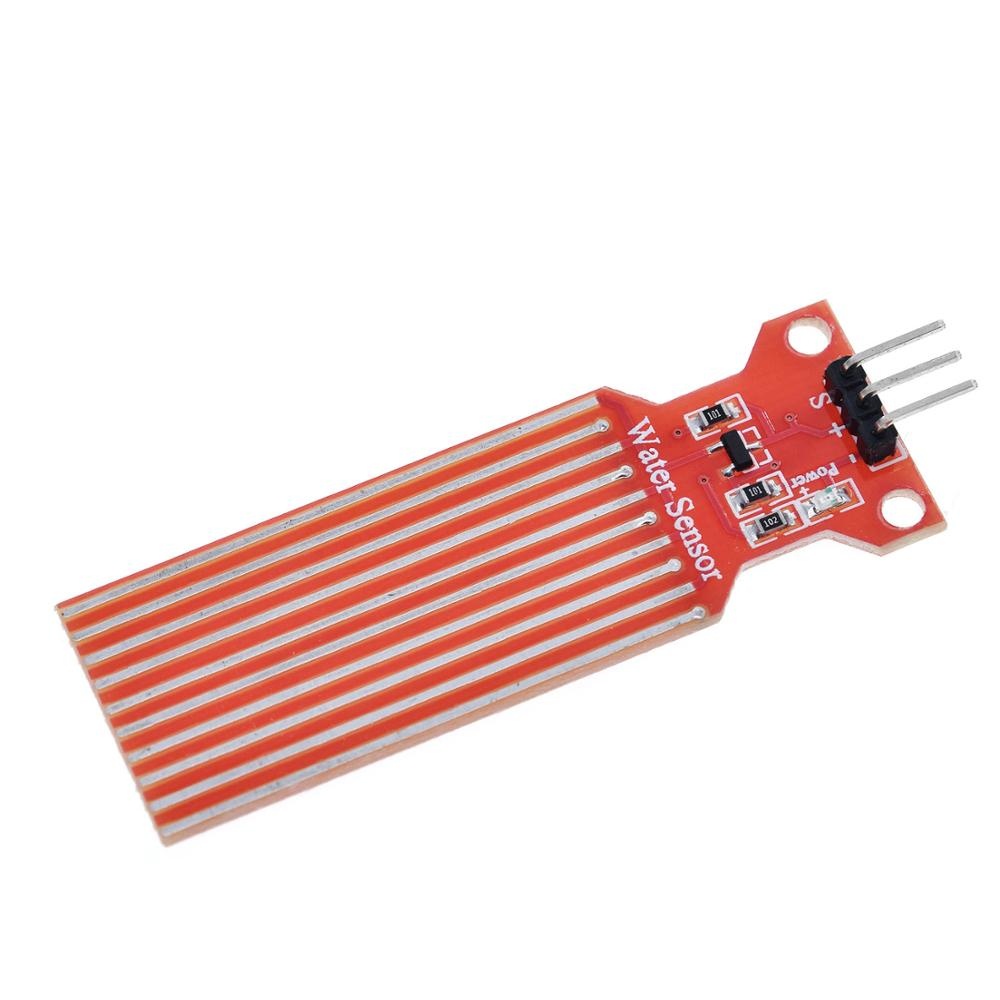

The Water Level Sensor is a simple and cost-effective solution for detecting high water levels or drops. It works by using a series of exposed parallel wires to measure water droplets or volume, allowing it to determine the water level. This sensor converts water levels into an analog signal, which can be easily read by an Arduino development board to trigger level alarms.

Basic Parameters:

-  Product Name:  Water Level Sensor

-  Operating Voltage:  DC 3-5V

-  Operating Current:  < 20mA

-  Sensor Type:  Analog

-  Detection Area:  40mm x 16mm

-  Production Process:  FR4 double-sided HASL

-  Operating Temperature:  10-30°C

-  Humidity Range:  10% - 90% (non-condensing)

-  Product Dimensions:  62mm x 20mm x 8mm

 Package Includes:

- 1 x Rain Water Level Sensor Module
